Adding Battery Modules Later: Compatibility, Space and Warranty Checks

A modular battery can offer expansion, but modular does not mean any future module will fit indefinitely. The existing controller, product generation, supported module count and installation conditions all matter.

Before buying extra storage, establish why it is needed. A battery running out early may need more energy capacity; a system unable to supply a large simultaneous load may instead be limited by output power.

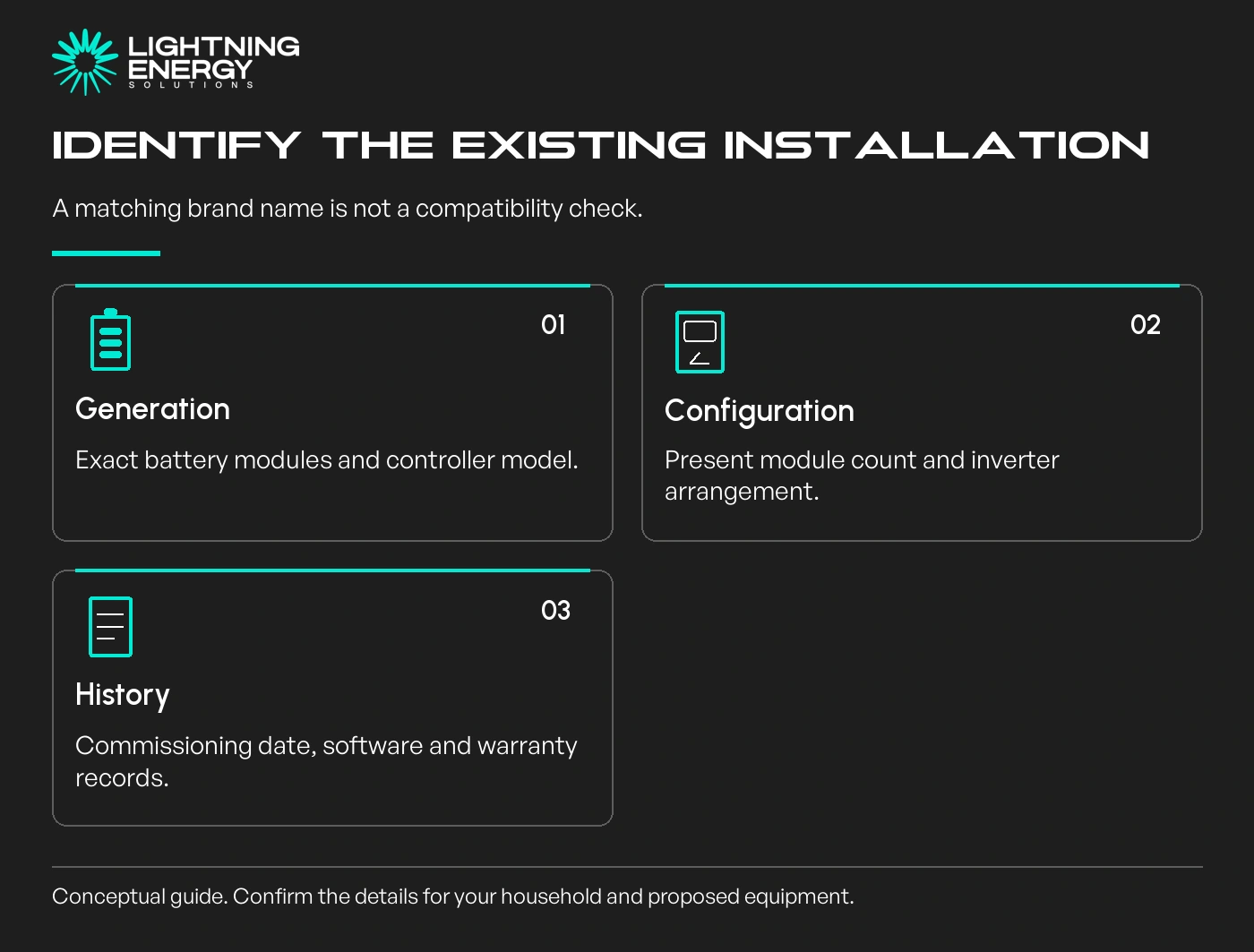

Record the system you already own

Collect the battery and inverter model numbers, module count, commissioning date and current software details from the handover records. Photograph accessible labels only where this can be done safely.

Ask the installer to check the current manufacturer compatibility and extension instructions. A battery with a similar appearance or brand name is not enough evidence that it belongs in the existing stack.

BYD's document library, for example, separates product generations and their supporting manuals. The correct document matters more than a general claim that a brand is expandable.

BYD official product documentation.

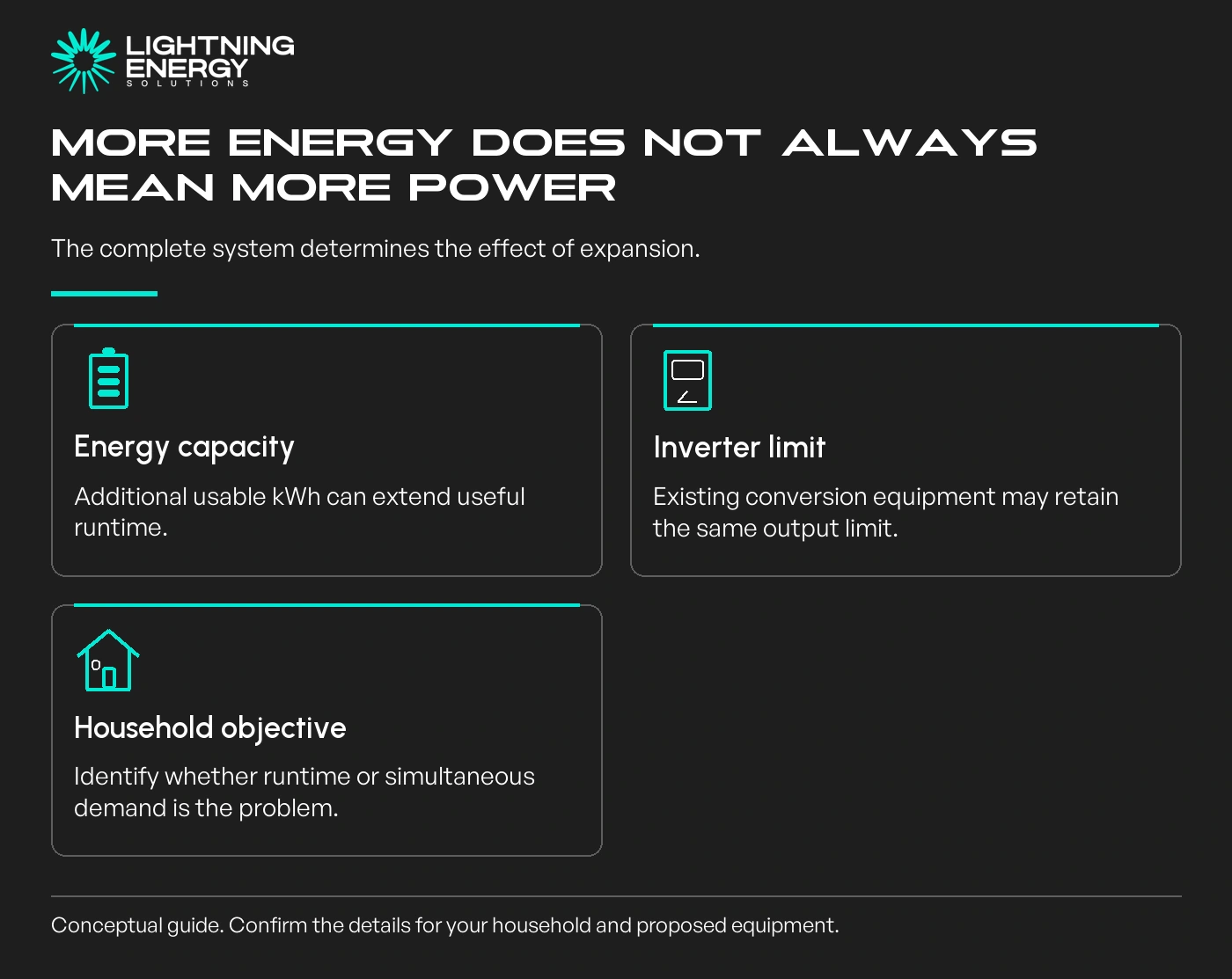

Separate extra energy from extra power

Additional modules can increase stored energy without adding another inverter. Whether output changes depends on the architecture and the limits of the complete supported combination.

Tesla's Australian Powerwall 3 Expansion documentation is an example of added storage behind the existing Powerwall 3 inverter. An expansion unit is not a second independent inverter.

Tesla Australian expansion specifications.

Our Powerwall expansion guide discusses that specific product. Other modular systems need their own calculation.

Imagine a hypothetical installation with enough energy to last four hours at its chosen load but insufficient output to start a large appliance. Doubling energy alone does not resolve a fixed inverter power limit.

Check age and warranty conditions

Ask whether mixed-age modules are supported, whether only new modules may be added and how the installer must prepare and commission the expanded system. These are professional procedures, not owner experiments.

Sungrow's current Australian HV warranty says expansion must follow its extension guidance.

It distinguishes adding modules to a stack from installing a new stack and ties the expanded stack's performance-warranty timing to the original system.

Sungrow Australian warranty and expansion terms.

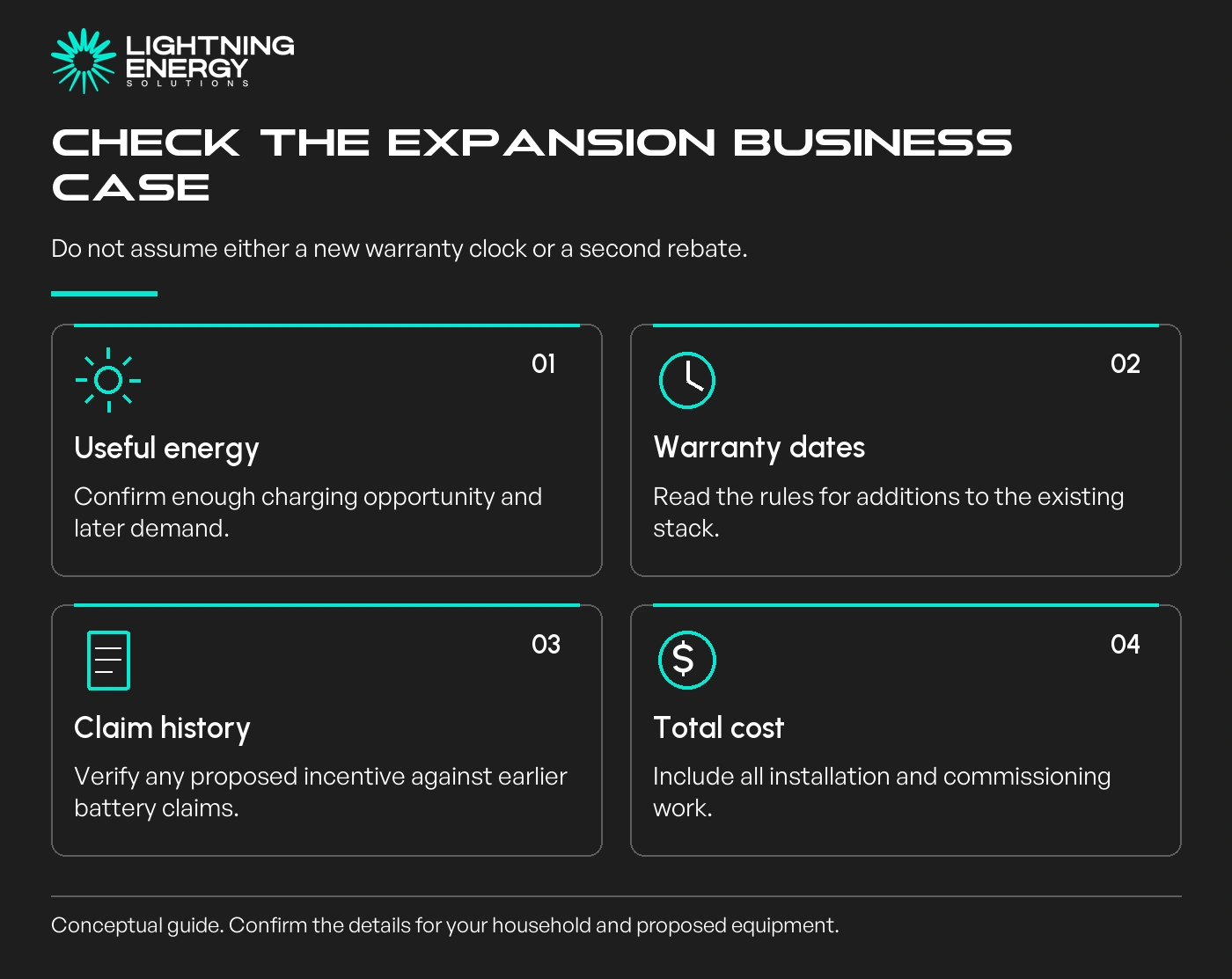

That illustrates why a newly purchased module does not necessarily restart every warranty clock. Get the applicable dates and coverage for your actual proposal in writing.

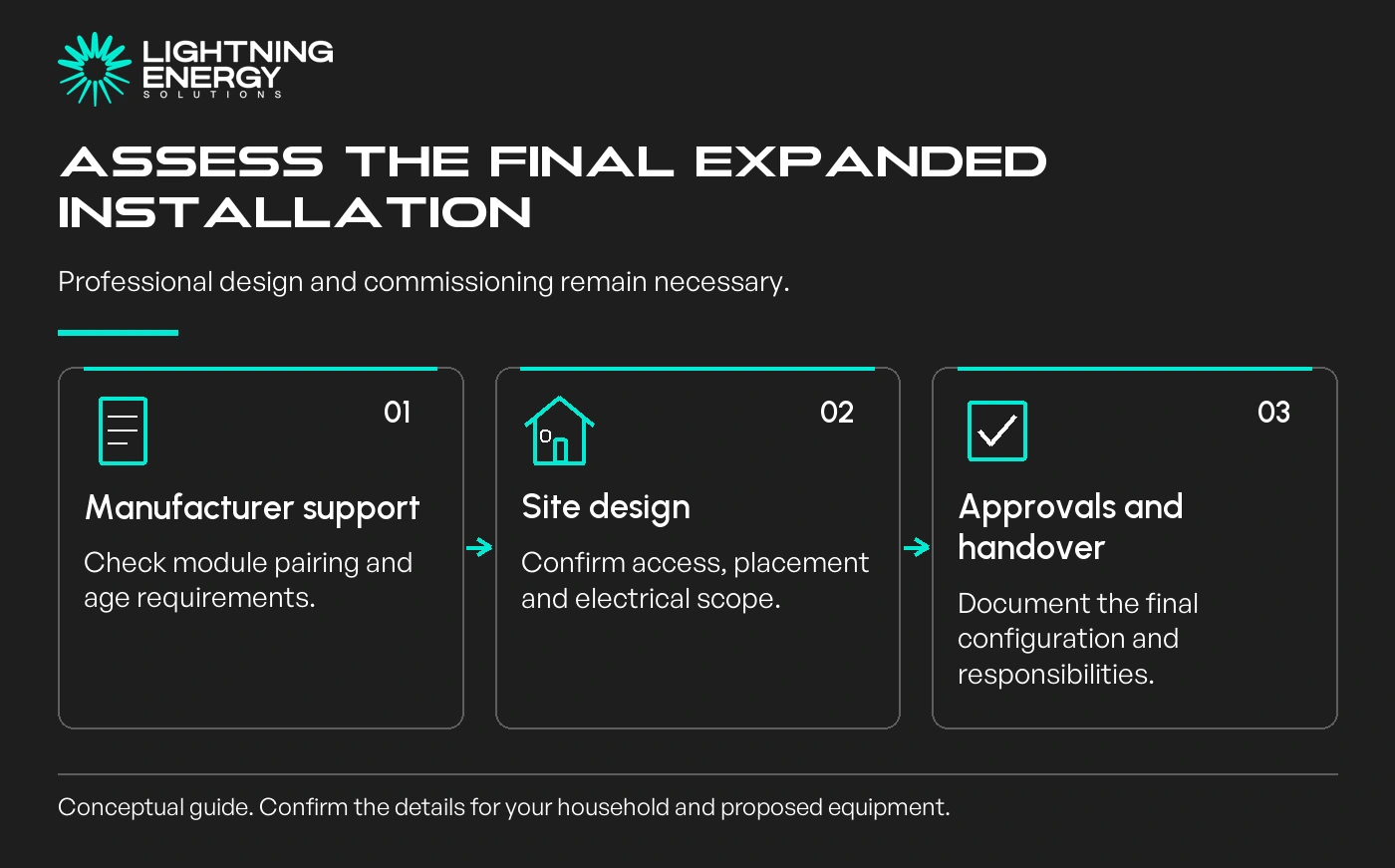

Leave room for a compliant installation

Physical room for another box is only part of the assessment. Clearances, access, mounting, cable routes and the final equipment arrangement need checking against current instructions and requirements.

A previous installation assessment does not automatically approve a larger arrangement. The installer should establish whether electrical work, network approval or updated documentation is required.

Our battery quote checklist helps make those responsibilities visible in the expansion price.

Compare that complete price with the useful extra capacity. If winter solar is already fully consumed by the house, adding storage does not create additional sunlight to charge it.

Recheck federal support before counting a discount

The CER does not allow a fresh battery STC claim simply because more capacity is added after an earlier battery claim. Expansion eligibility has further conditions where the existing system has not previously claimed.

CER expansion and claim requirements.

Treat any advertised expansion discount as conditional until the property's claim history and proposed final configuration are checked. Do not subtract an assumed rebate when judging affordability.

A battery assessment can compare the current performance data with the proposed expansion. Sometimes adjusting supported schedules or reducing demand is a better first step than purchasing more modules.
