Does a heat pump need a new circuit or switchboard work?

A new heat pump does not automatically mean a new switchboard. It does require an electrical assessment that matches the exact appliance and the condition of the existing installation.

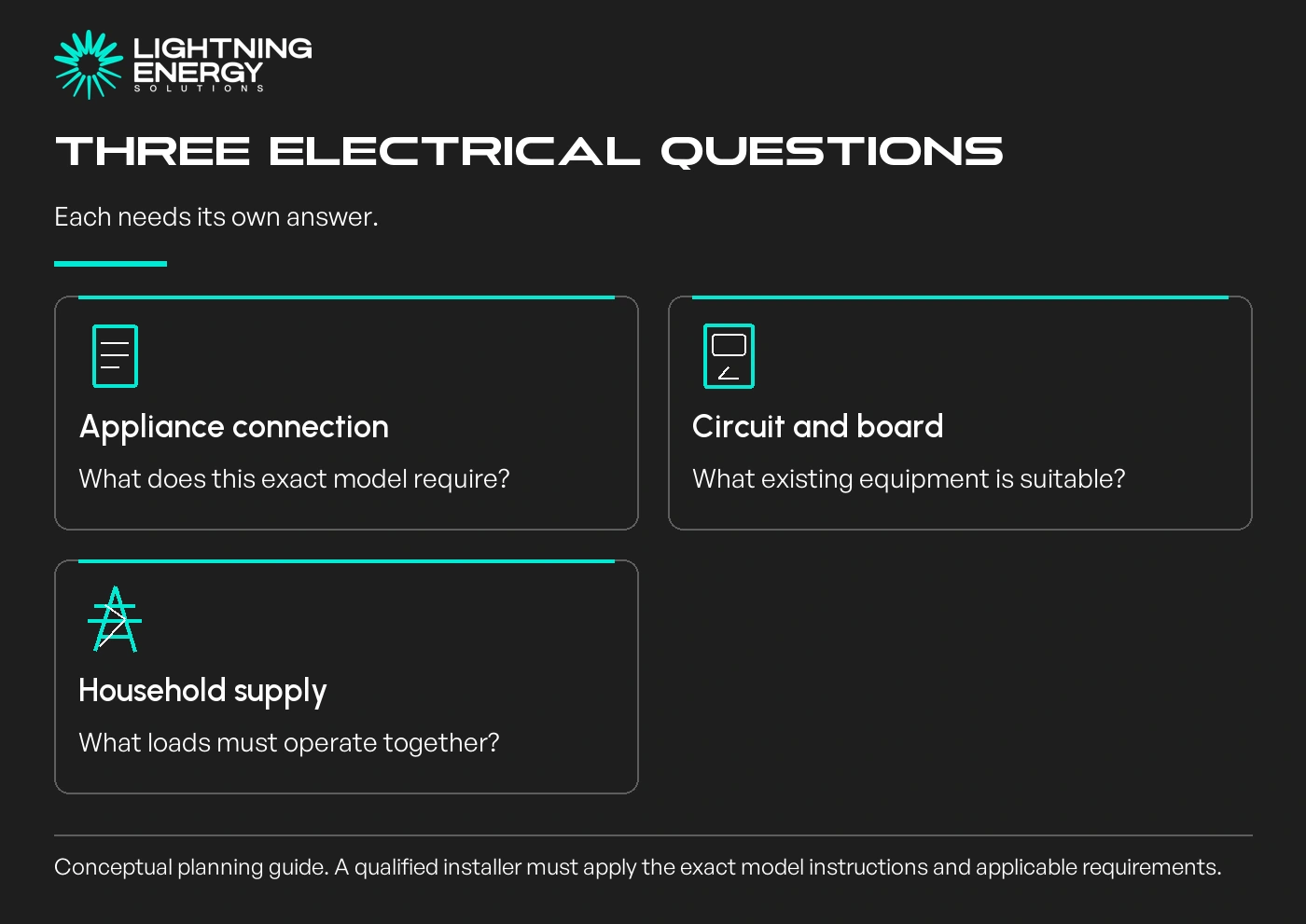

Keep three questions separate: how the heater connects, whether its circuit and protection are suitable, and whether the home’s wider supply can support the planned loads.

Start with the exact appliance requirements

Ask for the full model number and current electrical specification. A general statement that heat pumps use little electricity is not a circuit design.

Compressor consumption, an auxiliary element and the appliance’s maximum electrical demand are different figures. The electrician needs the requirements for the complete proposed equipment.

As checked on 11 October 2026, Haier lists its HP200M1U1P and HP250M1U1P Monoblock models with 10A plugs.

Confirm the full model number rather than assuming every unit in a range has the same connection.

That label does not make an arbitrary nearby socket or extension lead a suitable installation.

Haier installation guide. This specifies a dedicated circuit.

Other equipment may have different connection requirements, so confirm the documents for the model actually quoted.

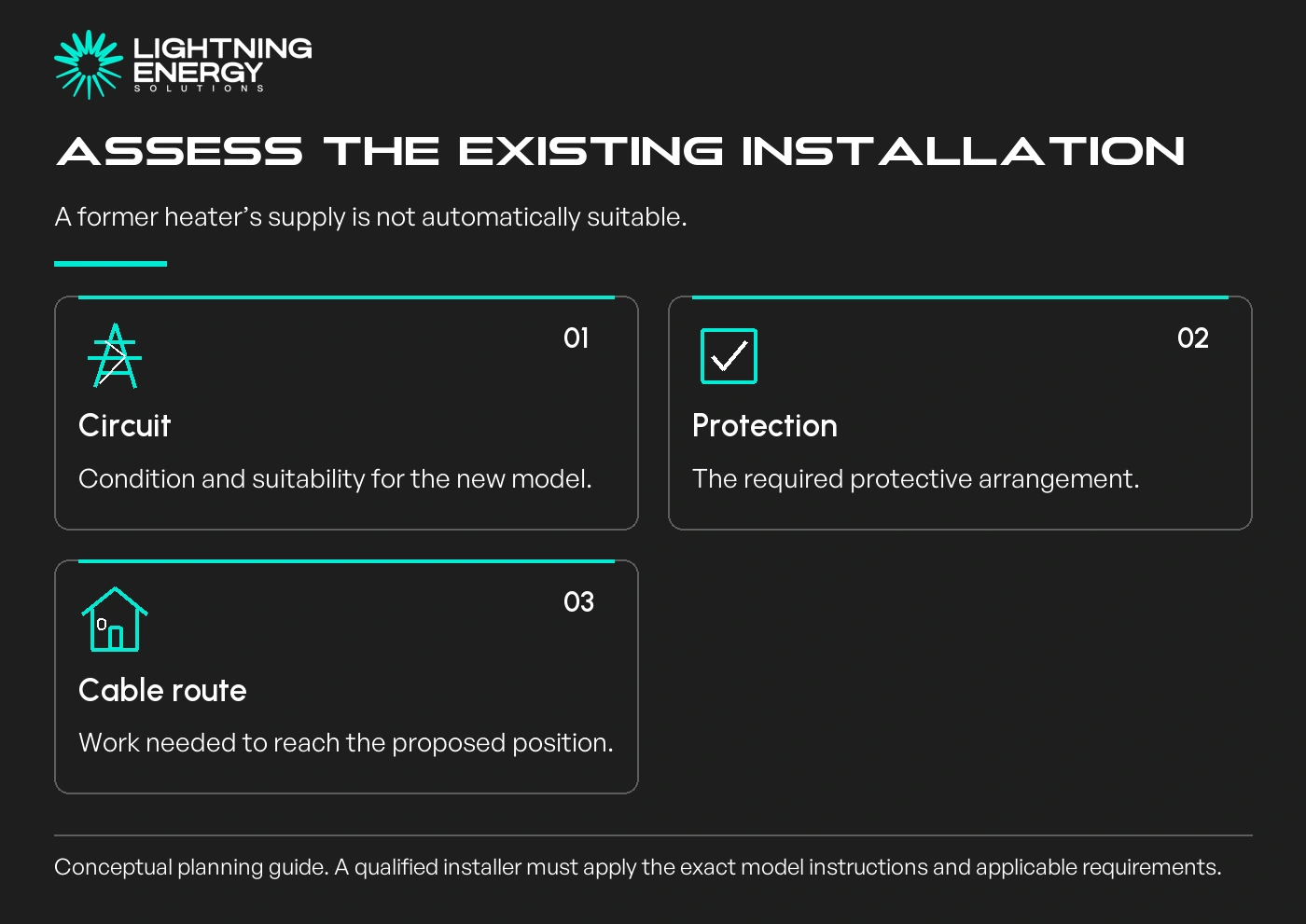

Assess what already exists

An existing electric water heater may already have a circuit, but that does not establish suitability for the replacement. Its condition, rating, protection and control arrangement still need checking.

A former gas heater may have no suitable electrical supply in the proposed position. The cable route and any necessary work should be included in the installation assessment.

Ask the electrician to explain which existing parts can be retained and which work is required. A photograph of the board can help prepare a quote, but cannot settle every site condition.

Our whole-home supply guide explains why the incoming supply and individual appliance circuits are separate considerations.

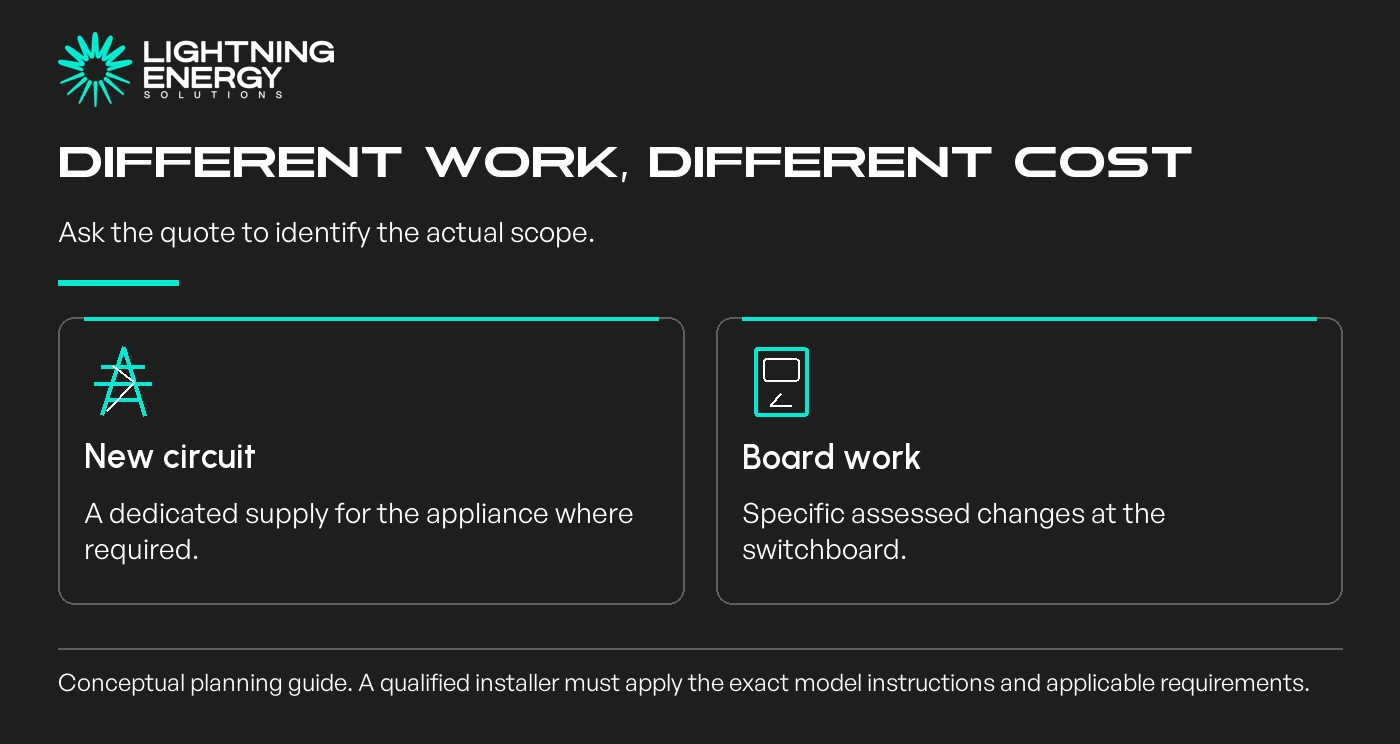

Put switchboard work in its own line item

If work at the board is proposed, ask what specific issue it resolves. Adding suitable protection, creating space and replacing an unsuitable board are different scopes.

A clear quote names the work, the reason it is needed and any unresolved assessment. It should not hide a substantial allowance behind a general “electrical upgrade” label.

An illustrative comparison: one home needs a new circuit from an otherwise suitable board; another has additional board issues to address. The same heat pump can therefore have different installed costs.

Compare heat pump quotes on that completed scope. Equipment price alone does not show whether the electrical work has been assessed properly.

Include timing and other planned appliances

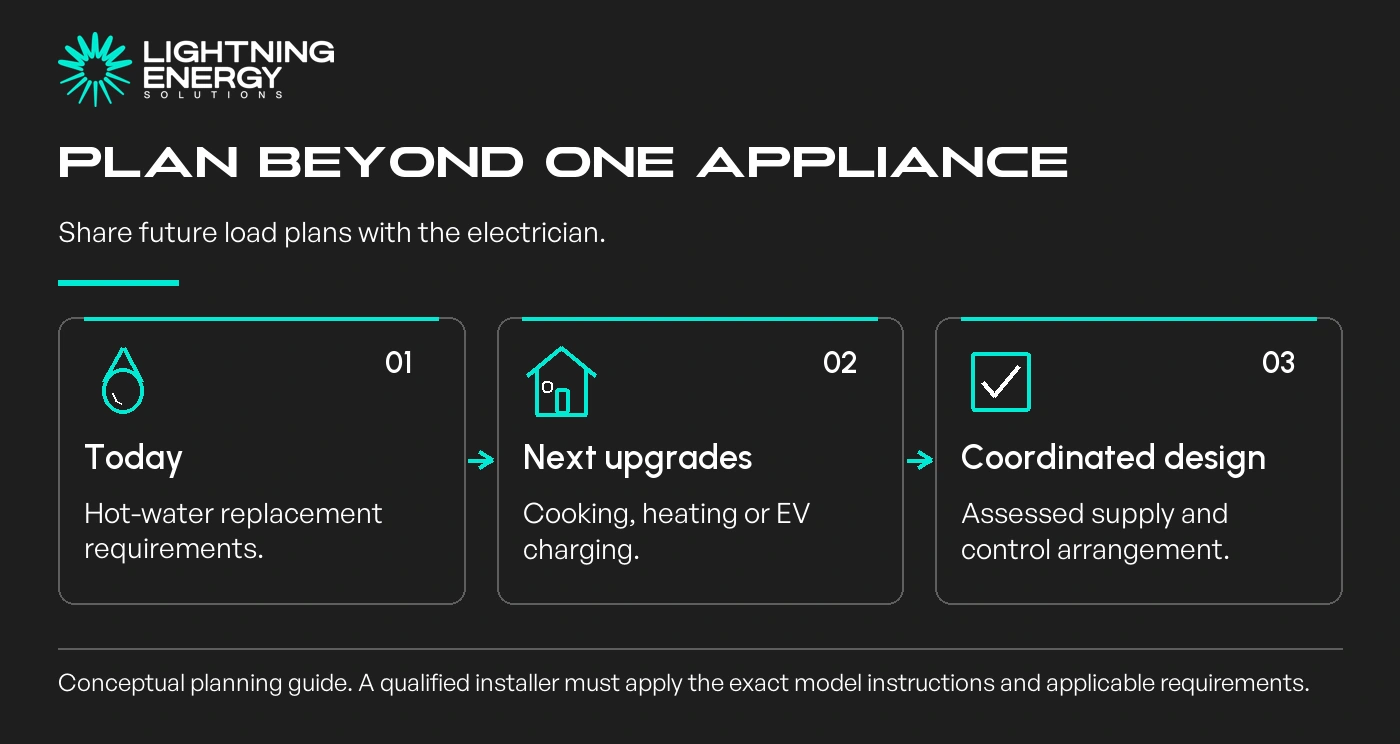

Tell the electrician about planned induction cooking, reverse-cycle heating and EV charging. A sensible assessment considers the loads the household expects to use together.

Also explain any controlled-load tariff or external switching associated with the old heater when planning solar timing.

The new system’s permitted supply and control arrangement must be established before carrying it over.

Use the appliance’s approved controls for the agreed operating strategy. Do not assume a generic plug-in timer is compatible with a heat pump simply because it can switch another appliance.

Solar Victoria’s planning guidance identifies electrical installation as part of heat pump planning.

Solar timing is a separate operating question from providing a suitable circuit.

Ask for a clear handover

Request the applicable electrical documentation, an explanation of the owner controls and a clear service contact. Keep these with the model details and installation invoice.

We would favour a proposal that explains the required work precisely over one that declares every house needs a complete board replacement. The answer should come from the assessed installation.

Send Lightning Energy your current heater and switchboard photos. Include future appliance plans so the discussion covers both the immediate replacement and the next stage of electrification.
