Jinko Tiger Neo in Australia: Model, Warranty and Roof-Fit Guide

Jinko Tiger Neo is a family of solar modules, so a useful review begins with the exact Australian model on the quote. Output, dimensions, construction and warranty can vary across generations and module codes.

This is a specification and roof-fit guide, not a claim of independent laboratory testing or a long-term Lightning Energy performance study.

Start with the model code

Jinko Solar Australia’s product information is the starting point for the matching datasheet. Compare the quoted wattage and dimensions together: a higher-wattage module can also be larger, so it may not produce the best layout on every roof.

Ask the designer to show the usable roof area, setbacks, shading and inverter arrangement rather than comparing panel efficiency alone.

Read both warranty documents

The product warranty and performance warranty describe different commitments. Use the documents for the exact model and market. Check the first-year allowance, subsequent degradation rate, duration and claim conditions together.

Do not combine a warranty period from one Tiger Neo variant with a degradation figure from another. If a sales table contains inconsistent numbers, request the original manufacturer document before relying on it.

Comparing Jinko with back-contact panels

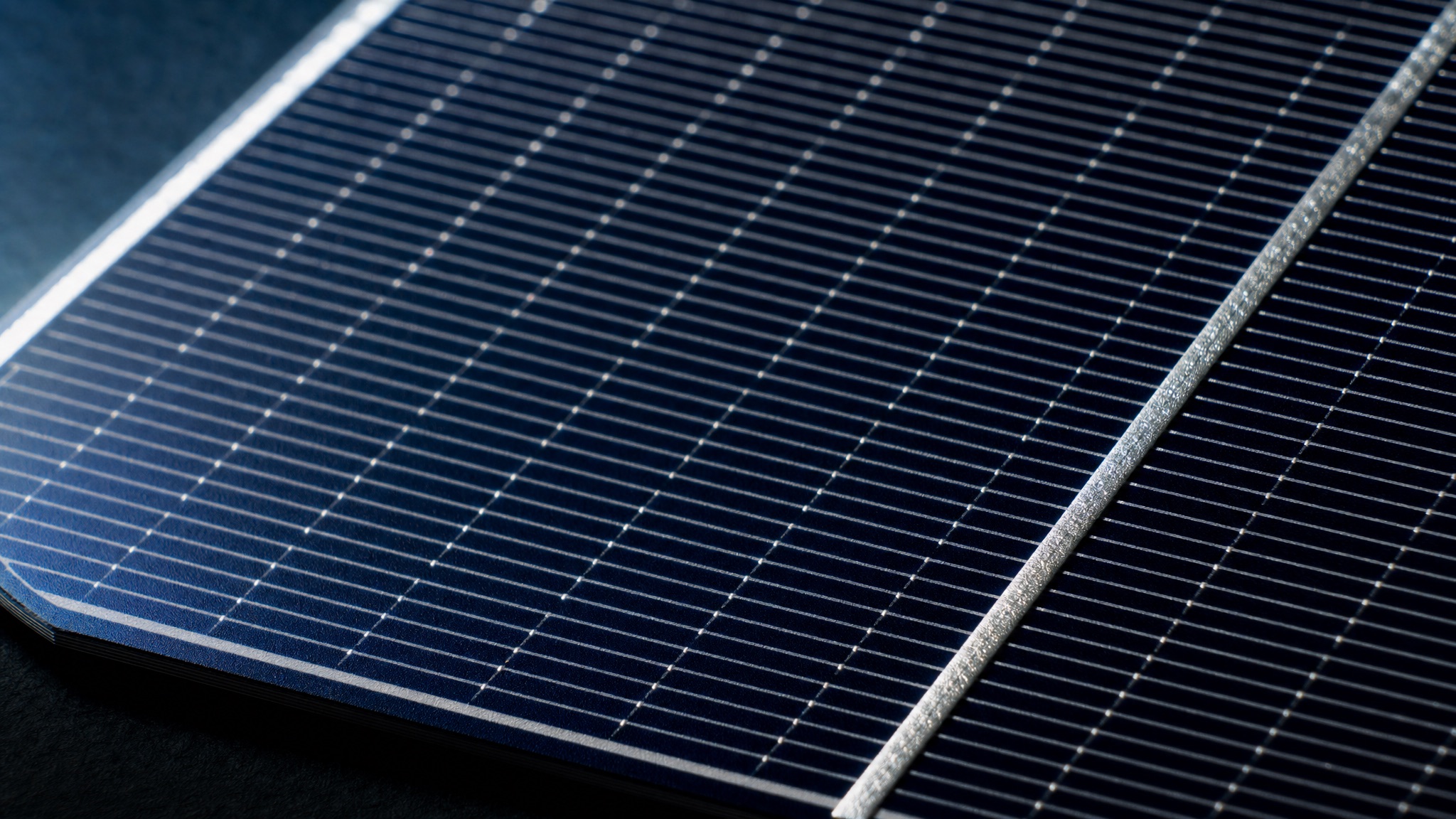

AIKO’s ABC description means All Back Contact. The electrical contacts are placed on the rear of the solar cells; it does not mean the cells themselves have been moved behind the panel. Removing front metal grid lines is one design feature, not proof that every back-contact module is the best choice for every roof.

Compare the complete roof design, annual production estimate, installed price and warranty responsibility using the selected models.

Compare whole-roof output with a simple worksheet

Consider an illustrative roof layout that accepts twelve 450 W panels: its nameplate capacity is 5.4 kW. A larger 500 W panel only improves the nameplate total if enough of those panels fit. If its dimensions limit the layout to ten, the total is 5.0 kW. These are arithmetic examples, not specifications for a particular Jinko or AIKO model.

Actual annual energy also depends on orientation, shading, temperature, inverter design and other losses. Ask for the proposed layout and estimated annual generation for both alternatives. That gives you a useful comparison of the complete system rather than only the wattage printed on one panel.

Keep the warranty calculation consistent

If a datasheet specifies a first-year degradation allowance and a later annual allowance, check that the stated end-of-warranty minimum matches those terms. Do not carry a percentage from one model into another model’s comparison table.

Ask who receives a claim, what evidence is required, whether removal and reinstallation costs are covered, and which parts of the installation have separate workmanship cover. A long performance-warranty period is not an assurance that every service cost is included.

What to request on the final quote

• Full module code and quantity, with the matching Australian datasheet.
• Proposed roof layout and inverter model.
• Generation assumptions, including shading and orientation.
• Product and performance warranty documents for that module.
• Monitoring, installation workmanship and aftercare responsibilities.

Use this information to decide whether the selected Tiger Neo configuration fits your roof and budget. A different panel may be worth the additional cost for a particular layout, but that conclusion should come from the actual design.

Contact Lightning Energy to discuss the options for your property and electricity use.
